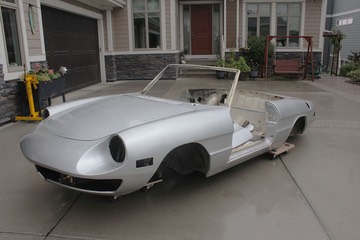

Here is a 1973 Spider that is getting a complete body and paint makeover.

IMG_3046


The first task is to chemically strip all paint from the body panels. Body edges and bottom will be sandblasted.

IMG_3303


The car is now stripped and sandblasted.

IMG_3333


There is lots of rust repair needed. The bottoms of the doors need replacing.

IMG_3347


IMG_3348


The taillight panel needs several patch pieces.

IMG_3360


IMG_3364


The inner wheel housing needs new metal as well.

IMG_3362


IMG_3363


A section of the spare tire well is replaced along with some patches on the side.

IMG_3368


A piece is fabricated using a bead roller to make the flanges and radiused edges.

IMG_3369


The piece is welded in place. Some other areas still need repair.

IMG_3371


The rockers need to be rebuilt and the door hinge assembly will be replaced with a new piece. There are four different pieces that make up the rocker panel. Each piece will be rebuilt starting from the inside and working out.

IMG_3404


IMG_3405


IMG_3406


IMG_3408


IMG_3409


IMG_3411


IMG_3413


IMG_3414


The rocker panel is mostly rebuilt, just the outer panel to be installed. The door hinge assembly is mocked up in place for fitment before welding.

IMG_3415


The outer rocker is in place. The inner rocker at the rear was rebuilt as well.

IMG_3419


A new outer wheelhouse is installed. Everything is undercoated prior to the new quarter panel being installed.

IMG_3420


IMG_3423
